New-Tech™ Fan Platform Assembly Pictures (8 of 12)
Previous Fan PictureNext Fan Picture

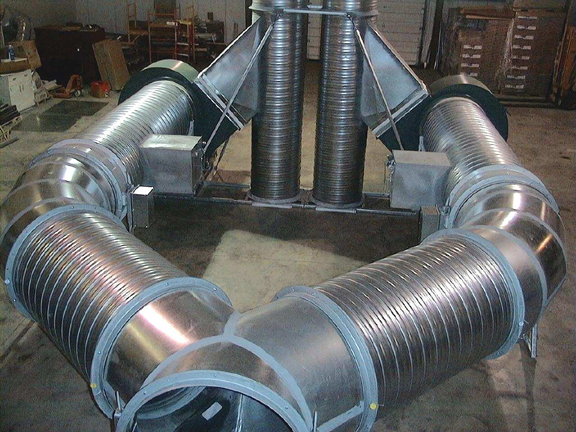

New-Tech Fan Platform Picture #8
  • Fan Platform Assembly Picture FP-08
  • Close Up View of the same double fan assembly shown in FP-05, FP-06 and RP-07.
  • This close up view shows the assembly from the inlet end with a better view of the damper actuator boxes and the exhaust stack relief dampers.
